What Does That Blinking Light Actually Mean: Boat Thruster Light Patterns (Part #1)?

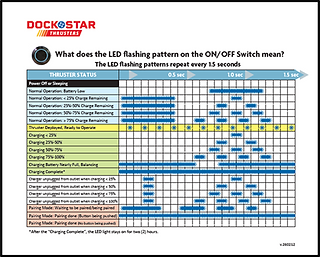

Handy Downloadable Chart

The first time most people power on their Smart Thruster boat thruster system, they watch that little light blink and wonder: what do these boat thruster light patterns mean?

It is; it's telling you something specific.

The DOCKSTAR Smart Thruster uses a single blue LED with distinct flashing patterns to communicate battery status, charge level, and whether the thruster is ready to operate. One color, multiple patterns. That was a deliberate design decision. Flashing patterns work for every boater, including those with color vision differences. No one gets left out.

When You First Power It On

The thruster arrives to you with the batter in a low state of charge. That's intentional. LFP batteries carry a lot of energy, and low charge is safer for transport. When you power it on in that state, you'll see a single slow flash about a half second long. That's the low battery signal.

Time to plug in.

A fully charged thruster shows one long flash followed by four short ones. One long, four short. That's the "ready to go" pattern.

While It's Charging

Charging patterns track the progress while charging.

·       One flash near empty

·       two above 25%

·       three above 50%

·       four above 75%.

Each set is evenly spaced with about a half-second pause between cycles.

Near the end, the thruster enters a balancing phase. The light goes long-on, short-off, repeating. That's normal. Let it finish. When balancing completes, the light goes solid for up to two hours, then shuts itself off.

Battery Care: A Few Things Worth Knowing

The batteries inside the DOCKSTAR Smart Thruster are LFP, a chemistry known for longevity and safety. With normal seasonal use, the battery is rated for well over a decade of reliable operation. A couple of things will help protect that lifespan.

Cold weather matters. LFP batteries do not perform well below freezing. A thruster left outside on a cold night may seem completely unresponsive when you go to use it. Bring it inside, let it warm back up to the 50s or 60s (F), and it will work fine again. Think of it the way you would a cordless drill battery — the chemistry is similar.

Heat has a limit too. The thruster's radio receiver stops accepting commands above 160 degrees internal temperature. In hot climates or direct summer sun, shade the thruster or spritz it with water to bring the temperature down. Once it cools, it operates normally.

At least once a year, ideally at the start and end of your boating season, let the thruster run a full charge cycle from low to fully balanced. The charger handles everything automatically when plugged into a standard 110V outlet overnight. It charges, balances, and shuts itself off. No monitoring required.

One Thing New Owners Often Miss

The batteries are embedded inside the thruster body. There is no separate battery pack with a label on it. People remember to bring their cordless tools inside for the winter because the battery is visible. The DOCKSTAR Smart Thruster does not advertise its battery the same way. Bring it in when temperatures drop.
