What Track Assembly Do You Need?
Use our guide to learn which track assembly is right for your boat
Which Thruster System Are You Interested In?
Info about this Track Assembly

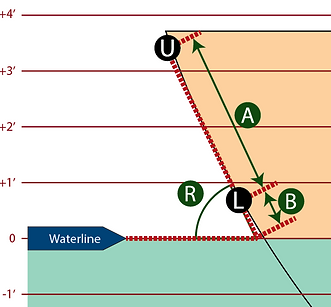

The Bow Track Assembly is affixed to your boat with hardware at two points: the Upper Mount Point (shown as "U") and the Lower Mount Point (shown as "L").
-
The Upper Mount Point may be the anchor roller, pulpit, gunnel, or any similar point.
-
The Lower Mount should be about 4 inches (100mm) above the waterline, but this may have to be higher on the bow depending on the boat.
Please decide these points, measure the following, and enter them in the corresponding fields
(A) The distance between the Upper and Lower Mount Points.
(B) The distance between the waterline and Lower Mount Point
(R) The angle between the bow and the waterline.
<- Back
Bow (Standard) Track Assembly
Your total Smart Thruster system price:
Smart Thruster $3,950.00 (USD)
+ Bow (Standard) Track Assembly $430.00 (USD)
+ Shipping & Sales Tax
<- Back
Bow (Extended) Track Assembly
Recommended Boat Type: Sailboat
The assembly is solely attached to the hull.
Ideal for bow control
Notes:
-
Could be difficult to raise/lower the Smart Thruster due to length or angle.
-
Not recommended for fast cruising boats.
Your total Smart Thruster system price: Smart Thruster $3,950.00 (USD)
+ Bow (Extended) Track Assembly $550.00 (USD)
+ Shipping & Sales Tax
<- Back
Custom Track Assembly
We will work with you to design and build a complete custom track assembly to meet you and your boat’s specific needs.
Contact us to start the design process.
The Custom Track Assembly prices vary based on the individual complexity and material costs.
Your total Smart Thruster system price: Smart Thruster $3,950.00 (USD)
+ Custom Track Assembly Cost
+ Shipping & Sales Tax
<- Back
Which style of Track Assembly is best for you?
.png)
.png)
<- Back
Info about this Track Assembly

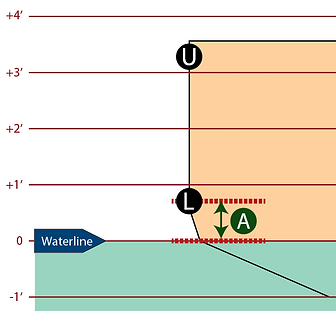

The Stern Hull Track Assembly is affixed to your boat with hardware at two points: the Upper Mount Point (shown as "U") and the Lower Mount Point (shown as "L").
-
The Lower Mount should be about 4 inches (100mm) above the waterline, but this may have to be higher on the stern depending on the boat
Please decide the Lower Mount Point and measure the distance between the waterline and the Lower Mount Point (A).
<- Back
Stern Hull (Standard) Track Assembly
Recommended Boat Type:
Boat with wooden or no swim platform.
-
The track is attached to the transom.
-
Low profile and may not Interfere with stern stowed dinghy.
-
The thruser is protected from impacts when installed through a cutout in the swim platform.
-
Modifications may be needed to the swim platform.
Your total Smart Thruster system price:
Smart Thruster $3,950.00 (USD)
+ Stern Hull (Standard) Track Assembly $320.00 (USD)
+ Shipping & Sales Tax
<- Back
Stern Hull (Extended) Track Assembly
Recommended Boat Type:
Boat with wooden or no swim platform.
-
The track is attached to the transom.
-
Low profile and may not Interfere with stern stowed dinghy
-
The thruser is protected from impacts when installed through a cutout in the swim platform.
-
Modifications may be needed to the swim platform.
Your total Smart Thruster system price:
Smart Thruster $3,950.00 (USD)
+ Stern Hull (Extended) Track Assembly $450.00 (USD)
+ Shipping & Sales Tax
<- Back
Info about this Track Assembly

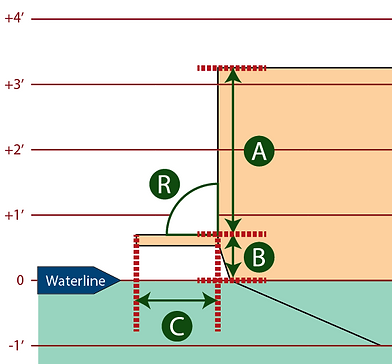

To determine the best Angled Stern Track Assembly design for your boat, please enter the following dimensions:
(A) The height of the transom from the swim step to the gunnel.
(B) The distance from the top of the swim step down to the water
(C) The length of the swim step forward to aft.
-
This should be measured from the transom to the trailing edge.
(R) The angle between the transom and the swim step.
<- Back

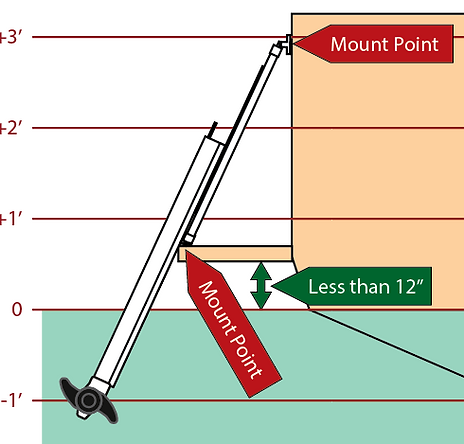

Angled Stern (Standard) Track Assembly
.png)
Recommended Boat Type: Boats with narrow swim platforms and high transoms.
-
The Angled Stern Track Assembly is affixed to your boat with hardware at two points.
-
The track is installed at top of the transom, just below the gunnel, and at the trailing edge of the swim platform.
-
Can be installed without making a cutout in the swim platform.
-
Greater thrust as the propellers are away from the hull.
-
May interfere with stern stowed dinghy.
Your total Smart Thruster system price:
Smart Thruster $3,950.00 (USD)
+ Angled Stern (Standard) Track Assembly $350.00 (USD)
+ Shipping & Sales Tax
<- Back
Angled Stern (Extended) Track Assembly
.png)
Recommended Boat Type:
Boats with narrow swim platforms and high transoms.
-
The Angled Stern Track Assembly is affixed to your boat with hardware at two points.
-
The track is installed at top of the transom, just below the gunnel, and at the trailing edge of the swim platform.
-
Can be installed without making a cutout in the swim platform.
-
Greater thrust as the propellers are away from the hull.
-
May interfere with stern stowed dinghy.
Your total Smart Thruster system price:
Smart Thruster $3,950.00 (USD)
+ Angled Stern (Extended) Track Assembly $620.00 (USD)
+ Shipping & Sales Tax
<- Back
Info about this Track Assembly

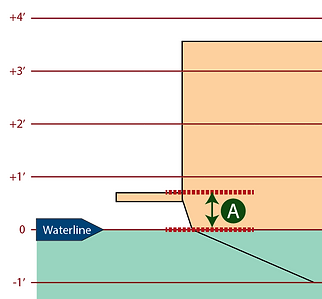

The Stanchion Track Assembly is affixed only to your boat's swim platform, or deck for pontoon and tritoon boats.
To determine the best Stanchion Track Assembly design for your boat, please measure the distance between the waterline and the top of the swim step or boat's deck (A).
<- Back

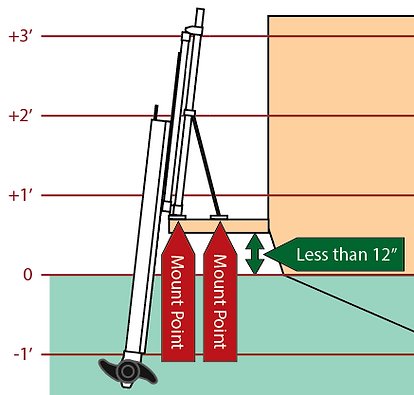

Stanchion (Standard) Track Assembly
.png)
Recommended Boat Type:
Boats with easy access to the swim platform or boat's deck.
-
The assembly is attached only to the swim platform or boat's deck.
-
Greater thrust as the propellers are away from the hull.
Your total Smart Thruster system price:
Smart Thruster $3,950.00 (USD)
+ Stanchion (Standard) Track Assembly $660.00 (USD)
+ Shipping & Sales Tax
<- Back
Stanchion (Extended) Track Assembly
.png)
Recommended Boat Type:
Boats with easy access to the swim platform or boat's deck.
-
The assembly is attached only to the swim platform or boat's deck.
-
Greater thrust as the propellers are away from the hull.
Your total Smart Thruster system price:
Smart Thruster $3,950.00 (USD)
+ Stanchion (Extended) Track Assembly $620.00 (USD)
+ Shipping & Sales Tax
